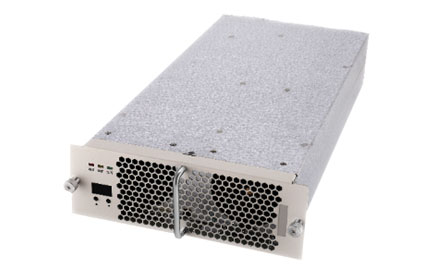

EV Charging Power Module

● Optimum power quality performance
● Wide operating temperature range
● Wide input voltage range
● High efficiency
● Robust protection

AC Input

Connection type:U/V/W+PE
Voltage rated:400V+20%
Voltage –derating:270V~490V
Input frequency:50Hz/60Hz+10%
Constant power:20kW
Max input current:40A
Power factor:≥0.99
                         (Maximum value)
THDi:≤5%
Max. efficiency:≥95%

DC Output

Voltage range:250~1000Vdc
Max current:73A
Current accuracy:≤±1.0%
Voltage accuracy:≤±0.5%
Current accuracy:≤±1.0%

Ambient Conditions

Operating temp. range:-40 ~+55C,
                                           w/o derating
Operating humidity:0~95%
Operating altitude:≤2000m

Mechanical Data

Dimension ( W*D*H) :
 248*461*84mm(Excluding handle)
Degree of protection:IP20
Cooling method:Forced air cooling
Noise level:≤65dB
Weight:10kg

Standard and Compliance

Communication:CAN2 .0A. CAN2.(Connector)
LED status indication:Run /Fault/Protection
Input circuit protection:built-in SPD. Fuse. Varistor
Output circuit protection:
External fuse, Anti-reverse circuit
